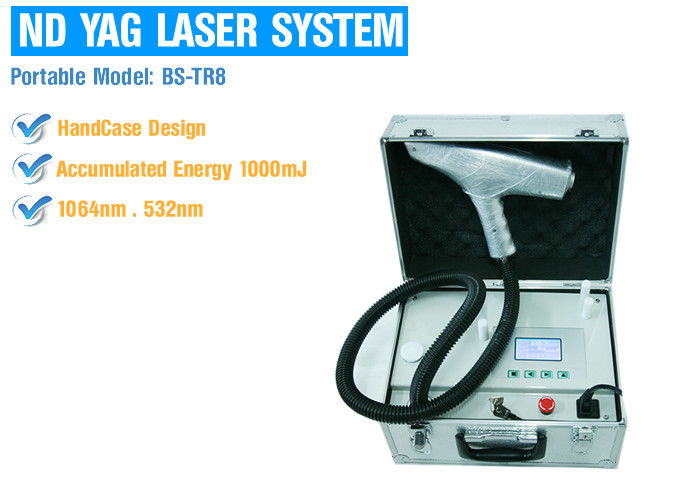

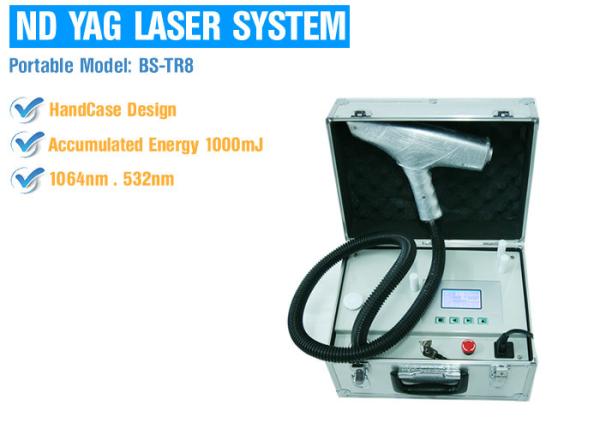

Q Switch ND-YAG Laser BS-TR8 for Colorful Tattoo Removal treatment
The pigmentation of body can be effectively broken up into pieces and removed by laser instantaneous high energy. Laser at certain wavelength can penetrate epidermis to lesion tissues within the extremely short time, then break up the corresponding chromospheres immediately. The corresponding pigment expands rapidly and explodes into pieces. Part of the pigment will be bounced our from patient's body at the moment, while the other part the pigment will split into the tiny graneles that can be engulfed by phagocytes of the body. After the digestion of phagocytes, it can be excluded from the lymphatic system. The pigment of the injured tissues gradually becomes shallow until disappears, which no injured trace will be left on the peripheral normal tissues, for they will not absorb the laser of the fixed wavelength.
Features:
Entire solid state laser green environmental protection machine
Special designed for long-time working environment with stable output
Permanently removal of pigment, safe treatment and low risk of scarring
Exchangeable aimer/filter tip with lens for different tattoo type
Exchangeable handpiece for easy replacement and maintenance
With the flexibility in treatment energy control gives little but tolerable pain effect
Auto-protection mechanism
LCD display with background light
High mobility for easy carrying, with aluminum alloy hand-carry box
Technical Parameter:
Q Switch ND-YAG Laser BS-TR8 for Colorful Tattoo Removal treatment | Type | Gem-adjusting Q-switch DN:YAG |
| Spectra wavelength | Double wavelength 1064nm, 532nm |
| Energy | Single pulse <200mJ,Multiple pulse < 800mJ |
| Pulse Width | < 10 ns |
| Repeat Frequency | 1 – 6Hz(adjustable) |
| Spot diameter | 1-10mm |
| Cooling system | Close-loop water cooling & wind cooling system |
| Aiming Beam | Diode laser 650nm(RED) |
| Net Weight | 11kg |
| Weight | 14.5Kg |
| Dimension | 350*250*200mm |
| Working Temperature | 5-28 °C |
| Input Power | 600Watts |
| Electrical requirement | AC 220V,50Hz or 110V, 60Hz(Optional) |
Is the Q switch laser treatment process painful?
No,Most clients compare the pain to that of getting a tattoo, except tattoo removal take far less time. Depending on the size of the tattoo, most laser treatments usually take only a matter of minutes.
After Q Switch Nd yag laser treatment, Will I have a scar?
No. When using the q-switched Nd:Yag laser and following the "aftercare instructions" provided, there is minimal to no scarring, from this procedure.
How many treatments will it take to remove my tattoo?
Each person is as unique as their tattoo, but most professional tattoos take between 5-10 treatments. Homemade tattoos usually take less. Laser tattoo removal treatments are spaced out 4-6 weeks apart.
Q-switch laser treatment before after picture:
Please feel free to contact us! We are at your service at any time!
